Summit Tractors Attachments & Accessories

BPX Series BoxPlane - 5'

BPX Series BoxPlane - 5'

4 total reviews

Regular price $2,599.99
Regular price Sale price $2,599.99
Sale Temporarily Out of Stock


Overall width: 59.25"
Working width: 58.5"
Overall height: 32.25"
Overall length: 35.8"

Weight with shanks: 500lbs
Number of scarifier shanks: 4
Shank adjustments: 3
Hitch type: CAT I/Compatible with quick hitch adapter
Angled front blade: Removeable
Made in USA

View full details

BPX Series BoxPlane - 5'

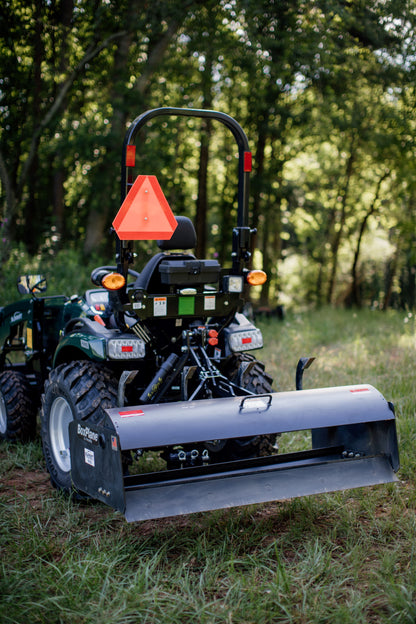

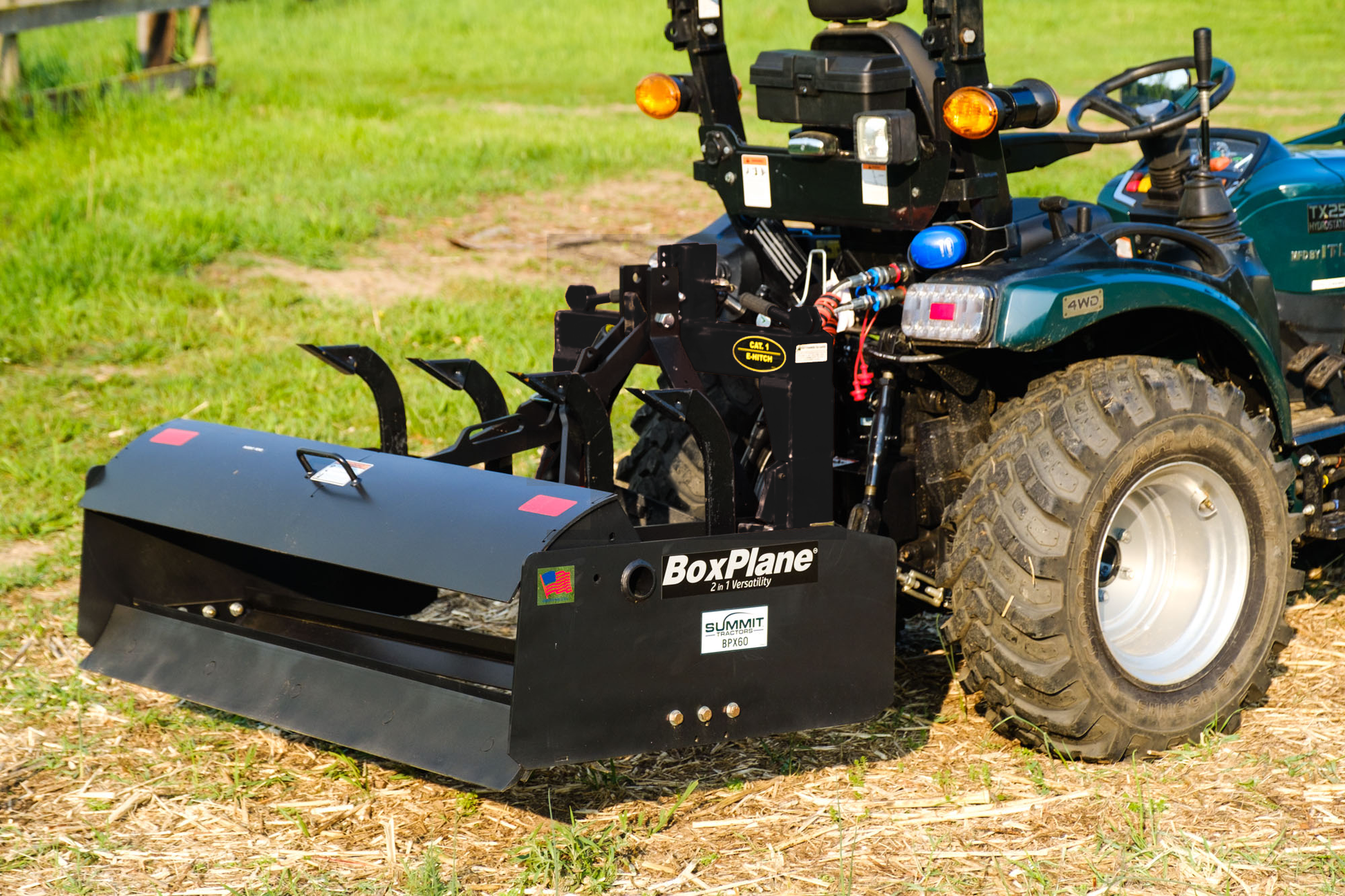

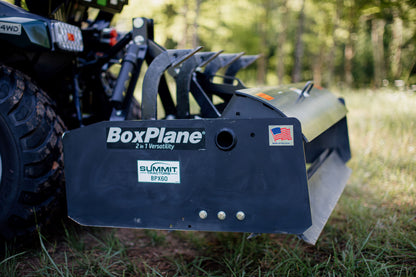

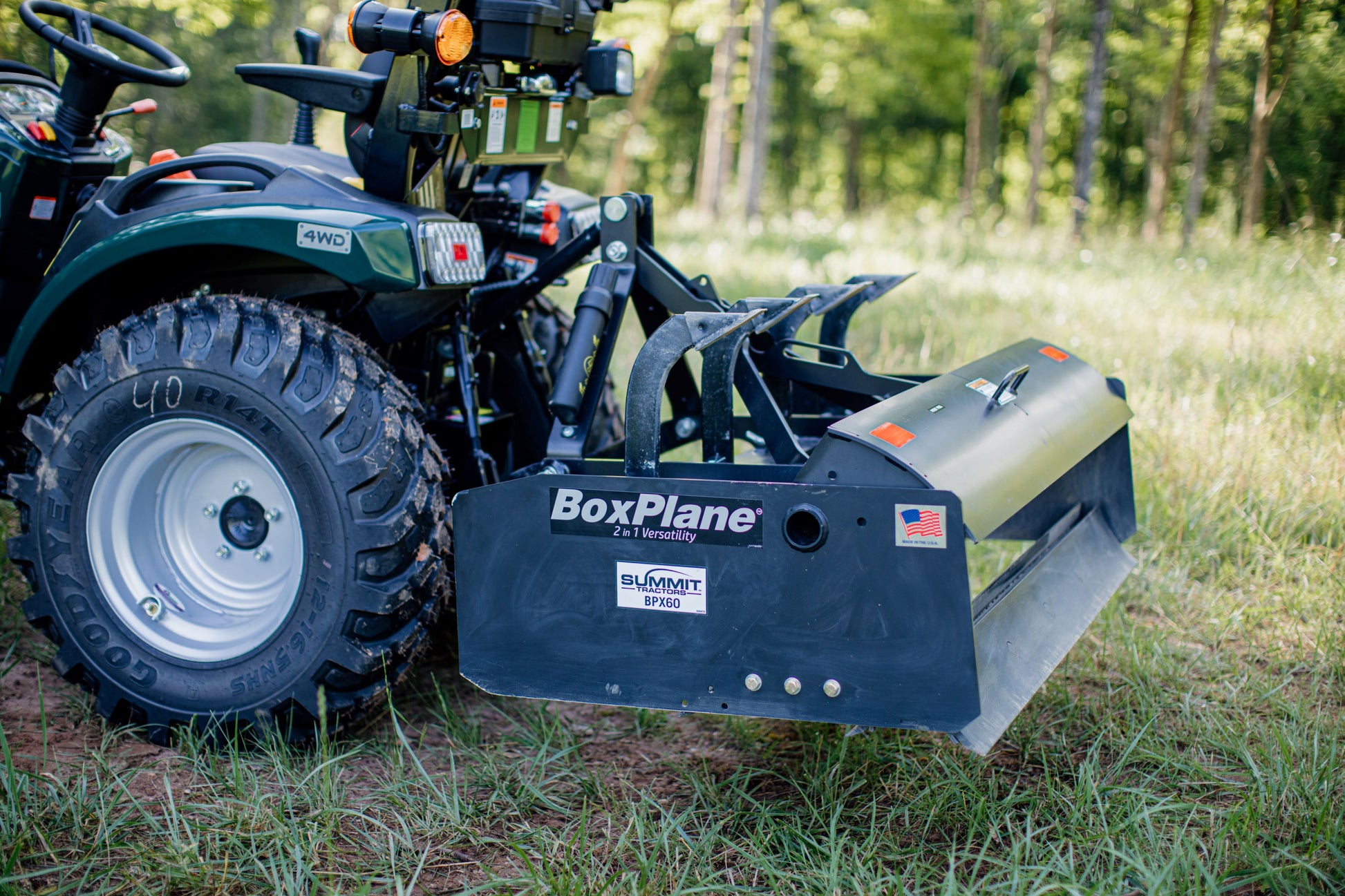

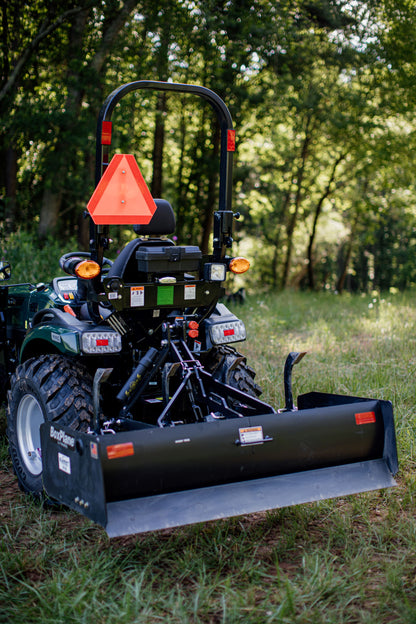

The Summit BPX Series BoxPlanes are a patent pending U.S. made Summit Tractors exclusive manufactured in Wisconsin. A true “2 for 1” implement, the BoxPlane does the work of both a box scraper and a land plane without requiring
the purchase of two attachments and having to switch between the two to produce the very best results to meet your grading needs.

Key Features

Convertible Rear Gate

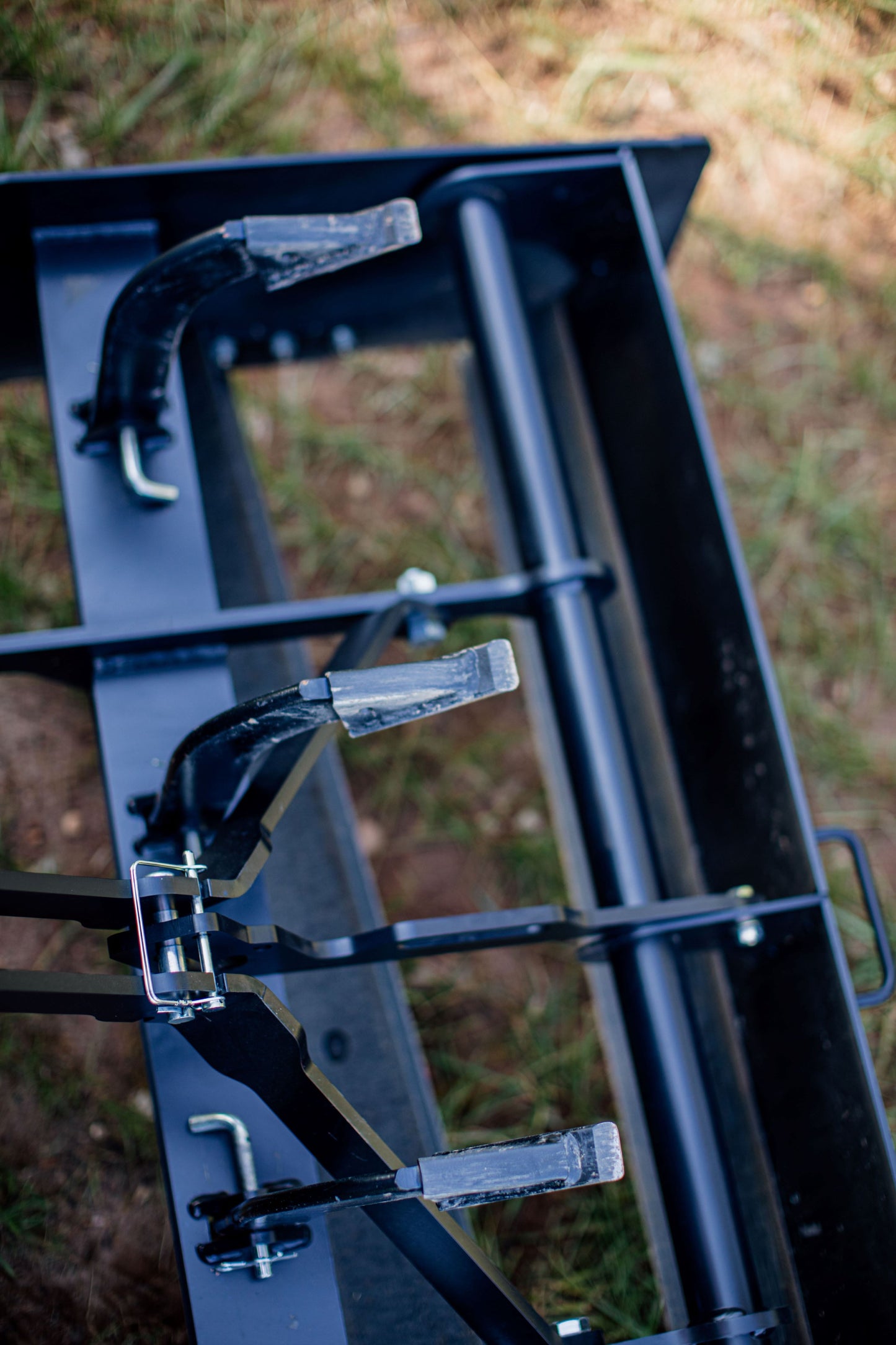

Four Scarifiers With Three Height Adjustments
Removeable Forward Cutting Edge
Category I 3-pt Hitch Compatible
Converts From Box Blade to Land Plane Mode
Heavy Duty – Weight 500 lbs.
Made in USA


Download the BPX Series Manual: BoxPlane Manual


Working Width: 58.5”
Overall Width: 59.25”
Number of Scarifier Shanks: 4
Tractor HP Requirement: 20-40 Gross Engine HP
Weight With Shanks: 500 lbs.
Overall Length: 35.8”
Overall Height: 32.25”
Side Panel Height: 14.5”
Side Panel Length: 34”
Cutting Edges: ½” x 6”
Shank Adjustments: 3
Lower Draft Link Attachment: Forged Draw Pins
Hitch Type: Cat. I Compatible w/Quick Hitch Adapter
Angled Front Blade: Removeable


Summit Tractors warrants to the
original purchaser that the BPX Series BoxPlanes be free of defects in material and
workmanship for a period of twenty-four (24) months from purchase date.

See the BoxPlane in Action
