BoxPlane

The Summit BPX Series BoxPlanes are a patent pending U.S. made Summit Tractors exclusive manufactured in Wisconsin. A true “2 for 1” implement, the BoxPlane does the work of both a box scraper and a land plane without requiring the purchase of two attachments and having to switch between the two to produce the very best results to meet your grading needs.

The Innovative Summit BPX60 BoxPlane – Available Now for Order with Delivery Right to Your Home. (Free Shipping in the Contiguous U.S.).

Order Your Summit BPX60 BoxPlane

Order your BoxPlane now! Orders for the Summit BPX60 BoxPlane are now being accepted and ship for free right to your home.

Order Now

WARRANTY

Summit Tractors warrants to the
original purchaser that the BPX Series BoxPlanes be free of defects in material and workmanship for a period of twenty-four (24) months from purchase date

Order Now

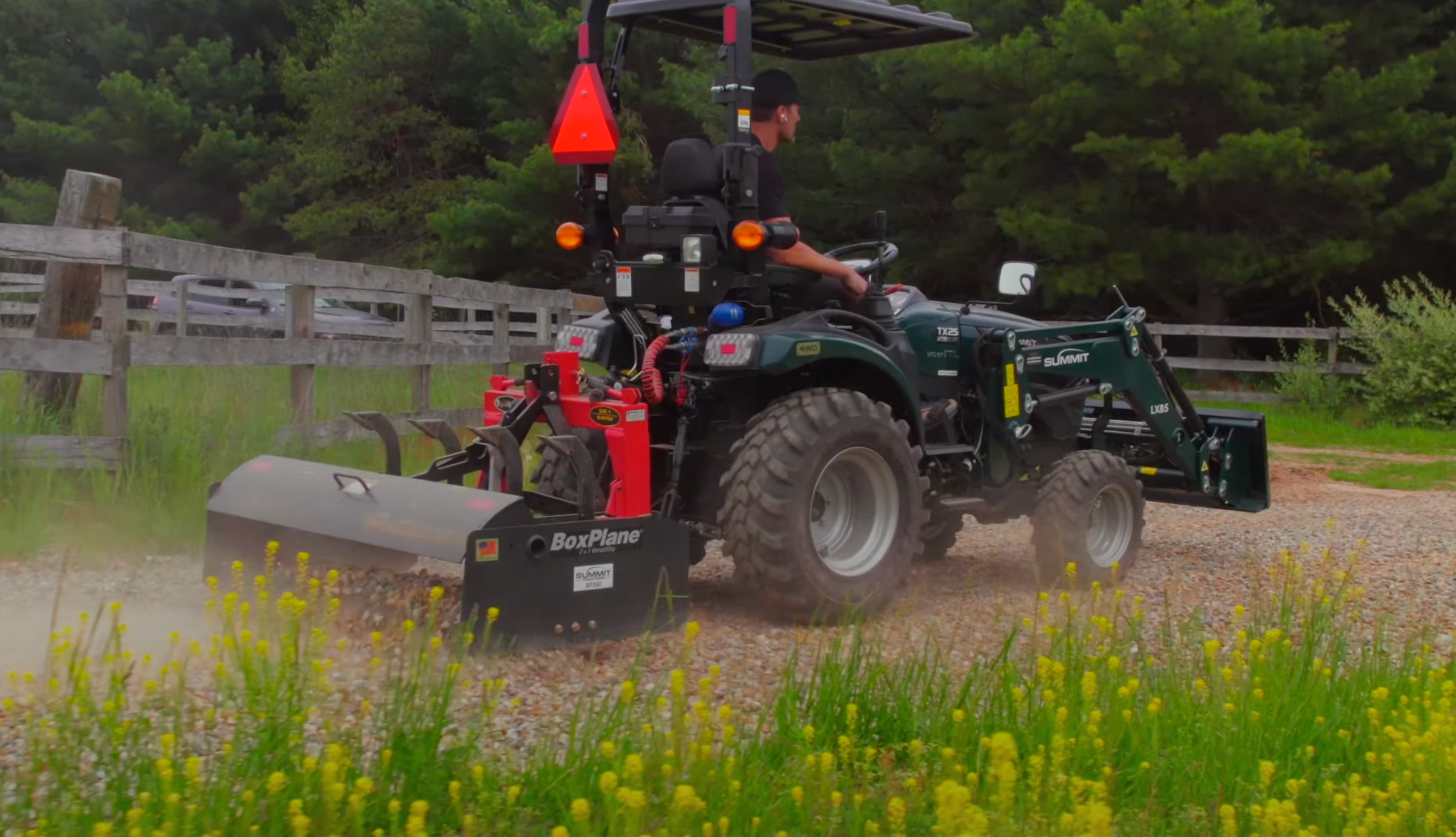

See the BoxPlane in Action

BPX SERIES BOXPLANE

  • SPECIFICATIONS

    60"BOXPLANE
    Working Width: 58.5”
    Overall Width: 59.25”
    Number of Scarifier Shanks: 4
    Tractor HP Requirement: 20-40 Gross Engine HP
    Weight With Shanks: 500 lbs.
    Overall Length: 35.8”
    Overall Height: 32.25”
    Side Panel Height: 14.5”
    Side Panel Length: 34”
    Cutting Edges: ½” x 6”
    Shank Adjustments: 3
    Lower Draft Link Attachment: Forged Draw Pins
    Hitch Type: Cat. I Compatible w/Quick Hitch Adapter
    Angled Front Blade: Removeable

  • KEY FEATURES

    Convertible Rear Gate
    Four Scarifiers With Three Height Adjustments
    Removeable Forward Cutting Edge
    Category I 3-pt Hitch Compatible
    Converts From Box Blade to Land Plane Mode
    Heavy Duty – Weight 500 lbs.
    Made in USA

  • WARRANTY

    Summit Tractors warrants to the
    original purchaser that the BPX Series BoxPlanes be free of defects in material and
    workmanship for a period of twenty-four (24) months from purchase date
